Laser marking and needle embossing system

Fully automatic laser and scribing marking system for marking aluminium and cast steel brake discs through laser marking and scribing.


Branch Automotive
Marking processes Lasers and needle embossing
Workpiece designation Brake disc
Workpiece dimensions 200 up to 450 mm
Material Aluminium

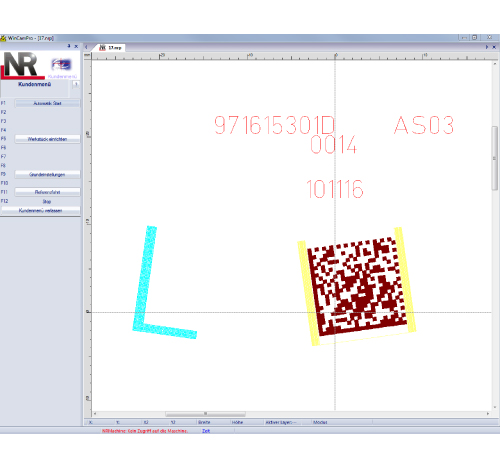

Identification content Clear text and DataMatrixCode
Marking time Laser: 12 seconds Needle marker: 38 seconds
Cycle time 60 seconds
Axis configuration 5 linear axes, 1 rotary axis
Workpiece feed Robot
accessories workpiece position detection, drilling pattern detection, DataMatrix reading system, pneumatic drawer + clamping system, suction system
