Control Unit

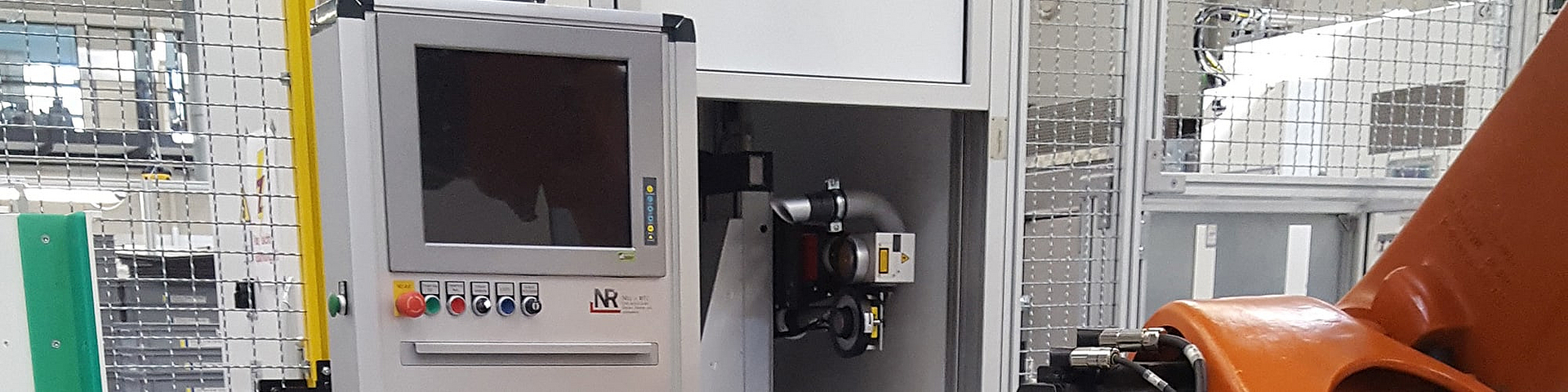

The CNC 3D control unit NR 4001 with its high-resolution stepper motor power parts ensures fast and dynamic feed behavior on the machines.

Product settings

  • Control in 19 "technology available as plug-in or desktop housing
  • Integrated display or external standard monitor
  • Integrated 3½ "industrial PC with 2½" hard disk, alternatively external industrial or standard PC
  • Embossing force adjustable via software
  • Updates, logos and fonts can be uploaded via USB stick / remote maintenance
  • Integrated PLC control (implemented as a software solution on the PC)
  • Marking possible in parallel to the data exchange

Interface

  • Freely programmable inputs / outputs 24 V
  • Serial interface RS232
  • USB
  • VGA
  • Ethernet
  • Optional CAN bus, PC 104, Profibus (implemented as a software solution on the PC)
  • Others on request
